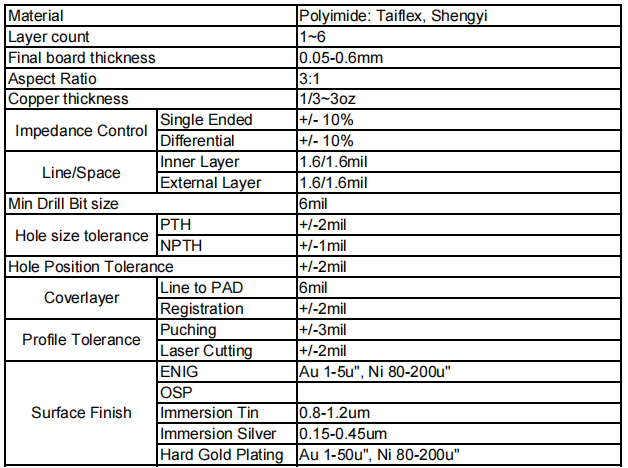

Flex & Rigid-Flex Capability

image description

Back drilling vias

1.Back-drilling production process?

A. providing a PCB, the positioning hole is arranged on the PCB, and the positioning hole is used to perform a drilling positioning on the PCB and performing a drilling and drilling;

B. Electroplating the PCB after drilling a hole, and performing dry film sealing on the positioning hole before electroplating;

C. making an outer layer pattern on the electroplated PCB;

D. performing pattern plating on the PCB after forming the outer layer pattern, and performing dry film sealing treatment on the positioning hole before pattern plating;

E. Using the positioning hole used in a drill to perform back drilling positioning, and using a drill to back drill the plating hole that needs to be back drilled;

F. After back drilling, wash the back hole with water to remove the drill cuttings left in the back hole.

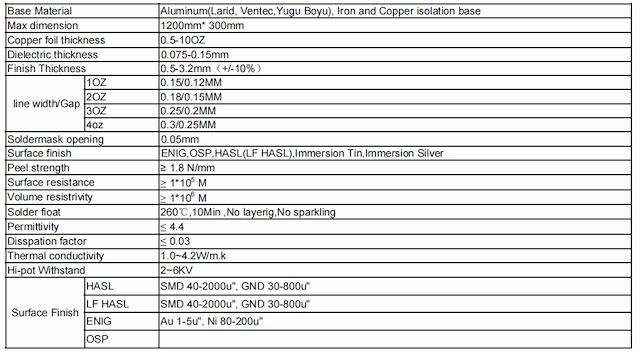

MPCB Capability

image description

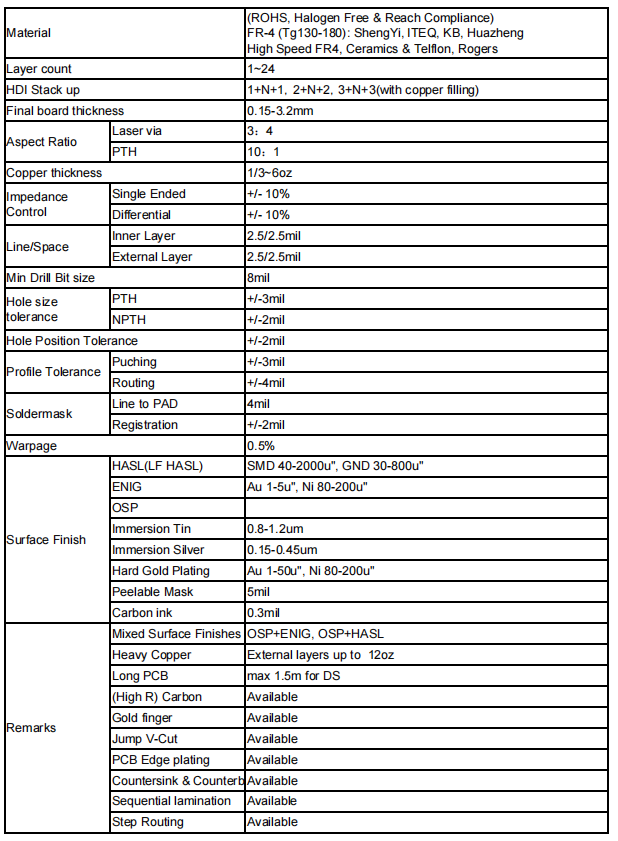

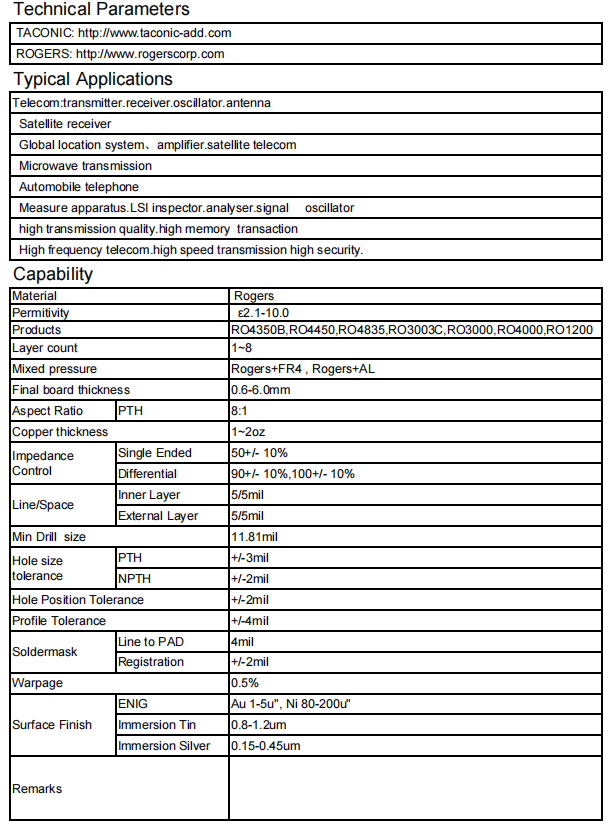

Rigid Capability

image description

PCB Manufacturer For the Best Customer Experience

image description
